Bombardier Challenger 3500
AIRCRAFTBOMBARDIERCHALLENGER 3500SUPER MIDSIZE

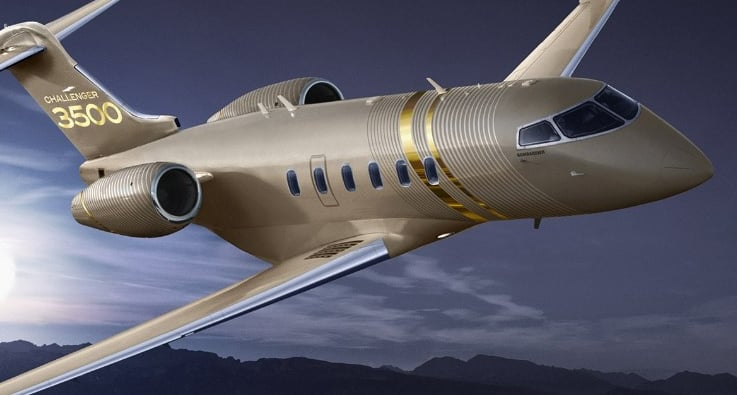

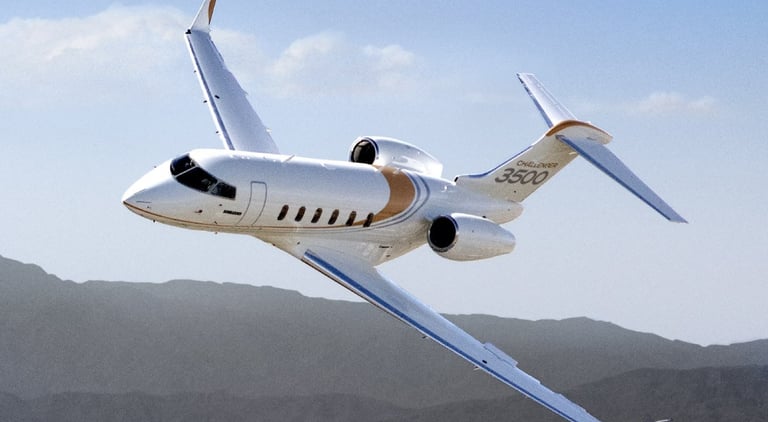

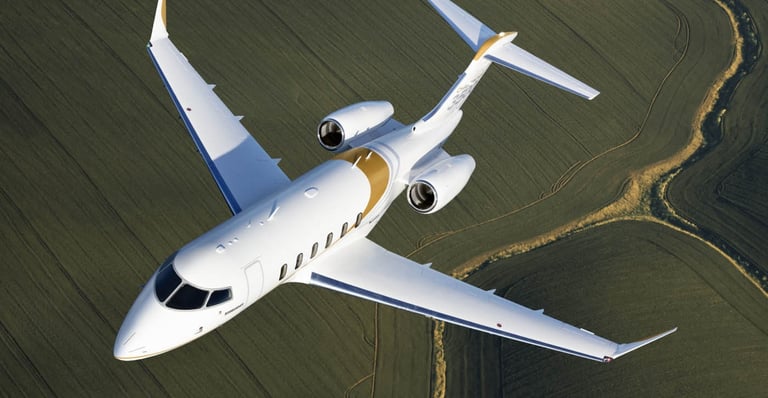

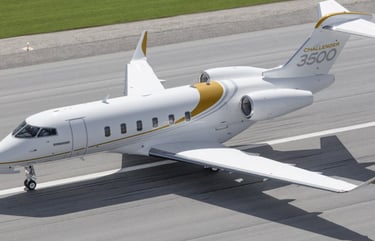

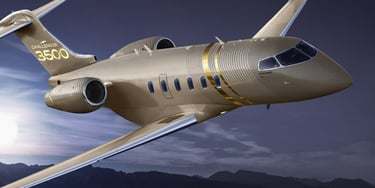

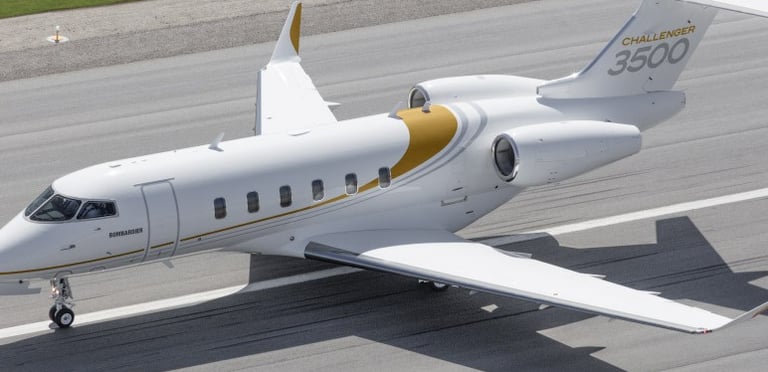

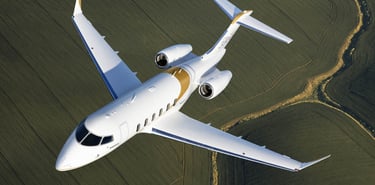

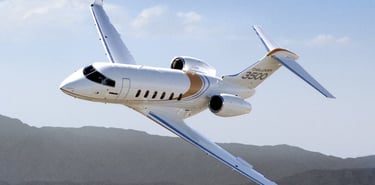

This is the Bombardier Challenger 3500
Certification: 2023 expected
The Bombardier Challenger 3500 is a super-midsize class jet with a max range of 3912 miles up to 628 mph for around 10 passengers which has been designed for sustainability and high reliability.
The Challenger 3500 is an upgrade of the Challenger 300 series with slightly better range, speed and cabin capacity.
Copyright: Bombardier
The Challenger 3500 can fly 370 km further at a slightly faster speed than the Challenger 300 and can take on 1 more passenger.
The Challenger 3500 has a 99.8% dispatch reliability and can be powered so it is ready to fly within 7 minutes. The Challenger 3500 can take off within 1474 meters and can land within 721 meters.
Challenger 3500 purchase cost - $27 million
Copyright: Bombardier
Copyright: Bombardier
Challenger 3500 Performance
Max Range - 6296 km / 3912 miles
Cruise Speed - 1012 km/h / 628 mph
Cruise Altitude - 45000 ft / 13716 m
Challenger 3500 Exterior Measurements
Length - 20.9 m
Wingspan - 21 m
Height - 6.1 m
Challenger 3500 Cabin & Passenger Info
Cabin Length - 7.68 m
Cabin Width - 2.19 m
Cabin Height - 1.83 m
10 passenger seats (max)

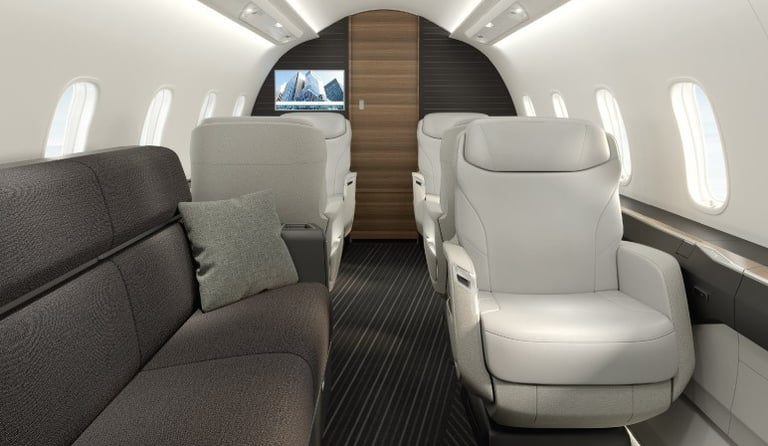

Seats & Divan
Lavatory
6 windows each side (12 windows total)
Cabin altitude - 4850 ft at 41000 ft
Wifi onboard
Baggage Compartment - 3 cubic meters
For further aircraft info: Challenger 3500 | Bombardier
Challenger 3500 Engines & Avionics
Engines - x2 Honeywell HTF7350 turbofans (7323 lbf each)
Avionics - Enhanced and synthetic vision systems. Dual HUD, FMS, GPS and IRS.
Copyright: Bombardier
Copyright: Bombardier
